P/N: C9300-48T-A

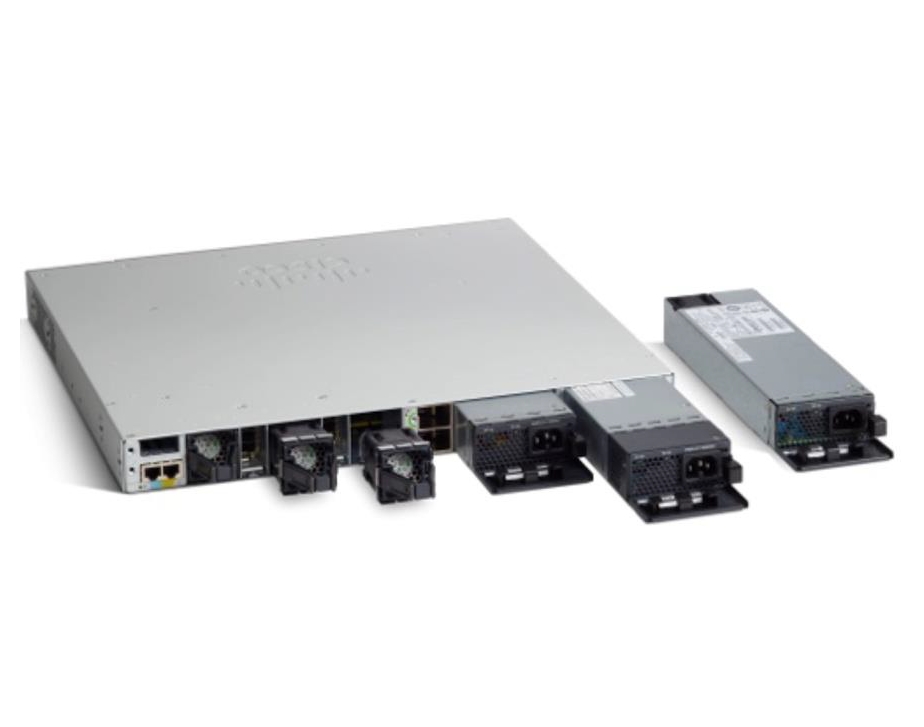

Commutator/ Switch, Cisco Catalyst 9300 48-port data only, Network Advantage

99

Characteristic

Switch, type Fixed Port
Total number of ports 48
Мain ports, type 48x10/100/1000Base-T
Power Over Ethernet (PoE) No
Uplink ports 0
Open (10GB) slots 1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).
Management SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
Stackable Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling
Fans Three field-replaceable fans
Power supply Dual redundant power supplies, Default power supply: PWR-C1-350WAC
Routing Layer 3 Advanced
Memory (Flash, RAM) Flash memory: 16 GB; RAM: 8 GB DRAM
Routing/Switching capacity, Gbps 256 Gbps
Throughput, Mpps 190.48 Mpps
MAC addresses 32000 MAC address table size
VLAN (number, standards) VLAN IDs: 4000; IEEE 802.1Q VLAN
QoS Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
L2 network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE
L3 network standards Advanced IP unicast routing protocols: full OSFP, EIGRP, BGPv4, IS-ISv4
IPv6 functionality IPv6 routing; IPv6 addressing; Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration; IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Security Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)
Dimensions (W, D, H), mm 445 x 445 x 44
Мounting option Rackmount
Other Задължителен е минимум 3-годишен лиценз DNA Advantage.
Warranty 99 months

EAN: -
