P/N: C1300X-48T-4X

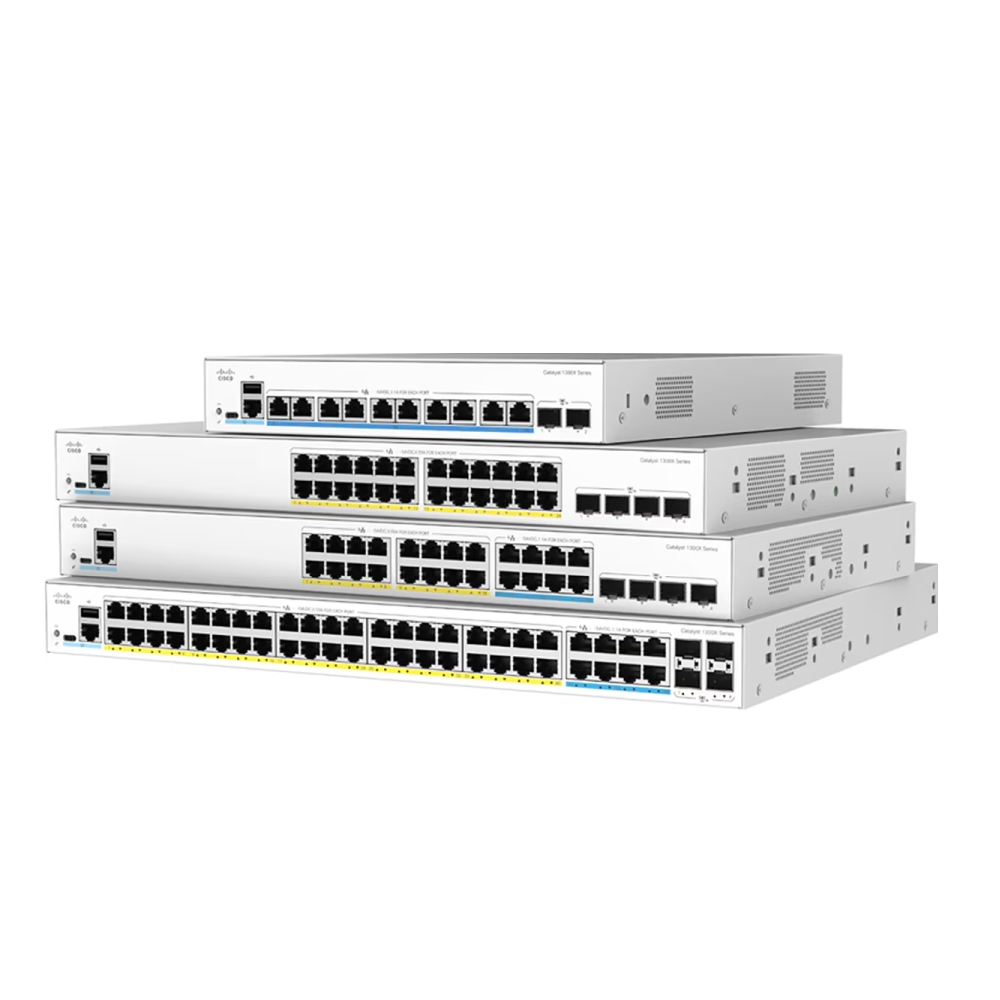

Комутатор, Cisco Catalyst 1300X 48-port GE, 4x10G SFP+

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 1300X 48-port GE Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	52
Основни портове, тип	48x 10/100/1000Base-T
Power Over Ethernet (PoE)	-
Uplink портове	4x10G SFP+ (10G Uplink, 25G available for stacking only)
Свободни (10GB) слотове	-
Управление	Cisco Business Dashboard; Cisco Business mobile app; Cisco Network Plug and Play (PnP) agent; Web user interface; SNMP; MIB; RMON; RSPAN; sFlow agent; DHCP; SCP; Other: Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS and etc.
Stackable	Supports up to 8 switches in a stack. Up to 400 ports managed as a single system with hardware failover
Fans	1
Захранване	100-240V 50-60 Hz, internal, universal
Routing	Dynamic Layer 3 routing
Памет (Flash, RAM)	1GB SLC (Flash), 2 GB DDR4 (DRAM), 3MB (Packet buffer)
Капацитет за маршрутизиране/превключване, Gbps	176 Gbps
Пропускателна способност, Mpps	130.95 Mpps
MAC адреси	16 000 addresses
VLAN (брой, стандарти)	Support for up to 4093 VLANs simultaneously; Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN; Management VLAN; Private/Guest/unauthenticated/Auto surveillance/CPE/Voice/Dynamic/Multicast TV VLAN
QoS	8 hardware queues; Strict priority and Weighted Round-Robin (WRR); Class of service: Port-based, 802.1p VLAN priority-based, IPv4/IPv6 IP precedence/Type of Service (ToS)/DSCP-based; Queue assignment based on DSCP and Class of Service (802.1p/CoS); iSCSI
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u/ab/ad/z/x/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC
IPv6 functionality	IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack IPv6 neighbor and router discovery (ND), IPv6 stateless address auto-configuration; DAD; IPv6 QoS;l ACL; First Hop Security; Multicast Listener Discovery (MLD v1/2) snooping; MLD
Сигурност	SSH v1 and v2, SCP, SSL, 802.1X: RADIUS authentication and accounting; Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; Trustworthy systems; Private VLAN; Layer 2 isolation Private VLAN Edge; Port security; RADIUS/TACACS+; DoS prevention
Размери (Ш, Д, В), mm	444.3 x 270 x 43.94 mm
Опция за монтаж	Rackmount
Гаранция	99 месеца
