P/N: GS108ES2

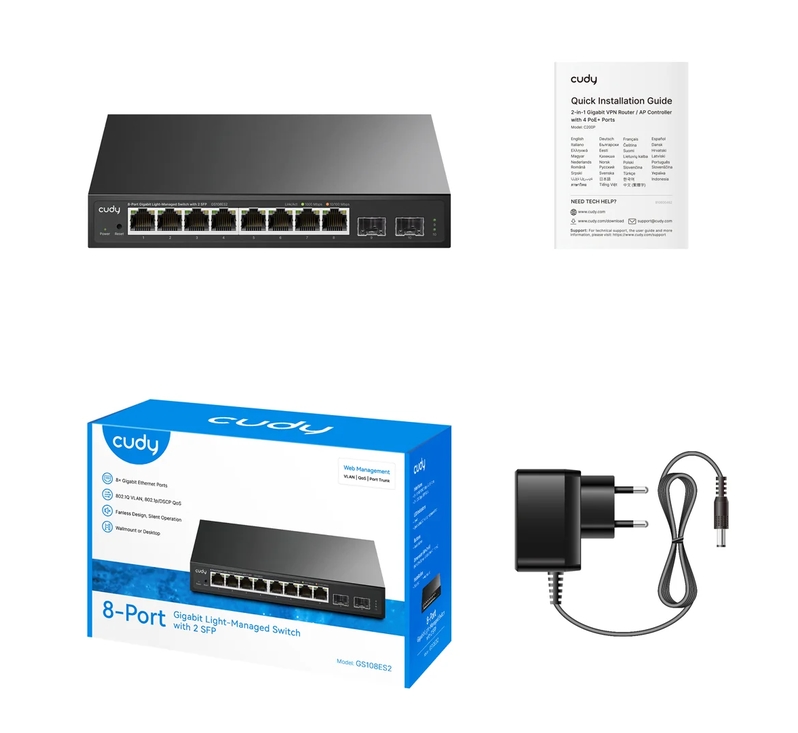

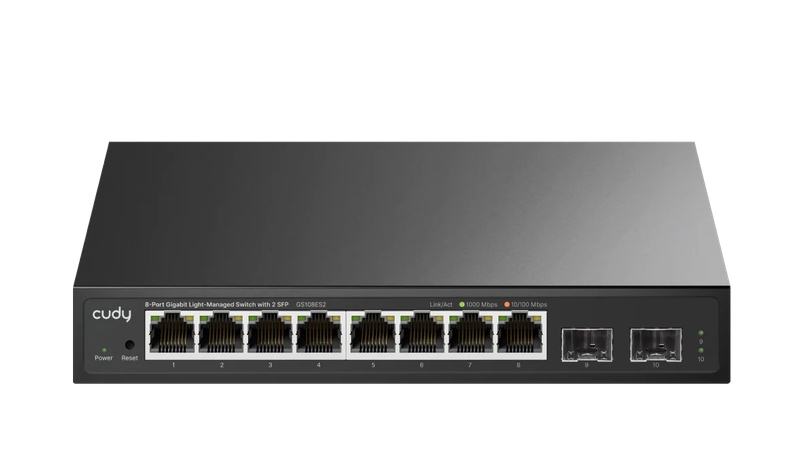

Commutator/ Switch, Cudy GS108ES2 8-Port Gigabit Easy-Managed Switch 10/100/1000M RJ45 Ports 2 Gigabit SFP ports Desktop Metal Case Local management via Web GUI support STP/RSTP MAC Management Cudy Cloud APP

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	10
Мain ports, type	8x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink ports	2xSFP
Open (10GB) slots	No
Management	Web Management, SNMP, Port Management
Stackable	No
Fans	Fanless design
Power supply	12V-1A, Power Consumption: 4.5W Max, 0.9W Idle
Routing	Layer 2 Only
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	21 Gbps
Throughput, Mpps	14.88 Mpps
MAC addresses	4096 MAC address table size
VLAN (number, standards)	VLAN (802.1Q/MTU/Voice/Port-Based)
QoS	QoS (802.1p/DSCP/Port-Based)
L2 network standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.1p, IEEE 802.1q
L3 network standards	-
IPv6 functionality	-
Security	IEEE 802.3x flow control, Loop Detection & Prevention, DHCP Snooping, IGMP Snooping
Dimensions (W, D, H), mm	190 x 100 x 28 mm
Мounting option	Desktop/Wall-mount/Rackmount
Warranty	36 months
