P/N: IPC-T220HA-LUC

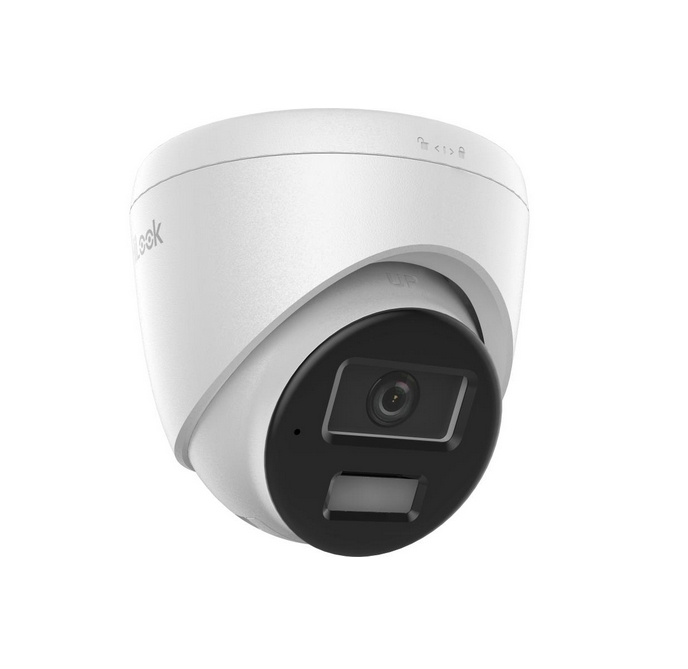

Camera, Hi-Look 2 MP Smart Hybrid Light MD 2.0 Fixed Turret Network Camera, 2.8mm, F1.6, IR,White Light up to 30m, H.265+, IP67, Digital WDR, 3D DNR, Built-in Microphone, 12Vdc/PoE 6.5W

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Type	IP
Sensor, type	CMOS
Оptical sensor size	1/2.9" Progressive Scan CMOS
Resolution, MP	2 MP
Focal length	2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
Minimum illumination, lx	Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR
IR lighting	IR, White Light up to 30m
Мax resolution, pixels	1920x1080
Compression formats	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Transmission frames speed	Main Stream - 50 Hz: 25 fps (1920x1080, 1280x720), 60 Hz: 30 fps (1920x1080, 1280x720); Sub-Stream - 50 Hz: 25 fps (640x480, 640x360), 60 Hz: 30 fps (640x480, 640x360)
Supported network protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS
Network interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Wireless network	-
Power Over Ethernet (PoE)	PoE: IEEE 802.3af, Class 3, max. 6.5 W
Input/Output ports	-
Sound	Built-in Microphone
Power supply	12 VDC ± 25%, 0.42 A, max. 5 W
Card slot	-
Night surveillance	IR cut filter
Outdoor mounting	yes
Waterproof	IP67
Vandal-Proof	-
Operating Temperature	-30 °C to 45 °C
Humidity range	Humidity 95% or less (non-condensing)
Security	Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Dimensions (W, D, H), mm	110 x 102.7 mm
Warranty	24 months
