P/N: DIS-200G-12S

Комутатор, D-Link 12 Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) ports & 2 x SFP ports

D-LINK мрежови продукти >> D-Link 12 Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) ports & 2 x SFP ports Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	12
Основни портове, тип	10x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink портове	2xSFP
Свободни (10GB) слотове	No
Управление	Web-based UI (supports IPv4/IPv6), Client-based D-Link Network Assistant (DNA), Industry-standard CLI, SNTP, SNMP v1/v2c/v3, SNMP trap, Telnet server, System Log, DHCP client, TFTP client, LLDP, DDP, Dual images, Dual configurations
Stackable	No
Fans	Fanless design

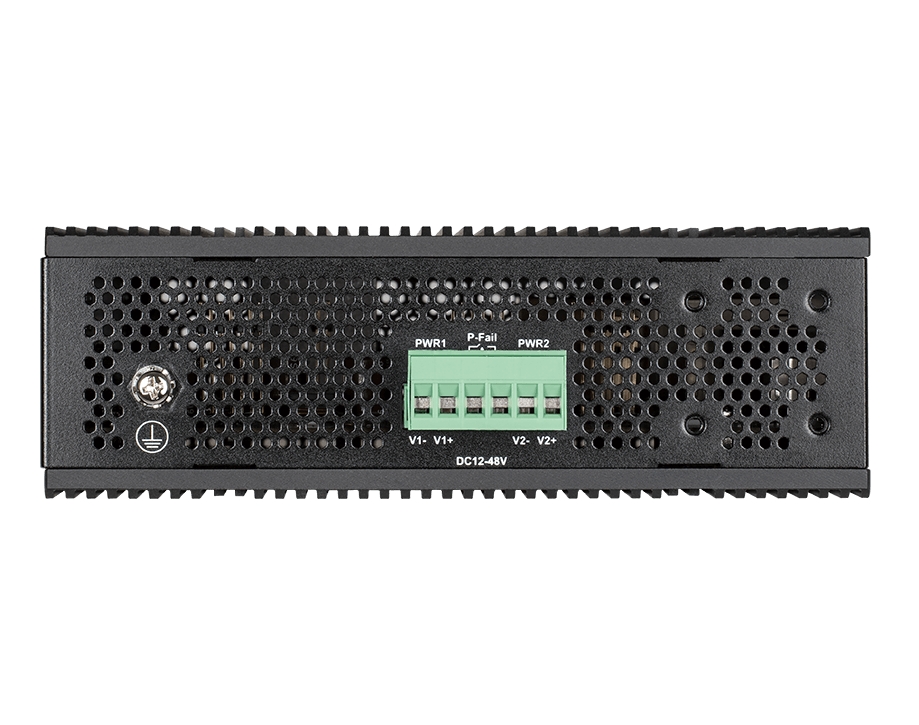

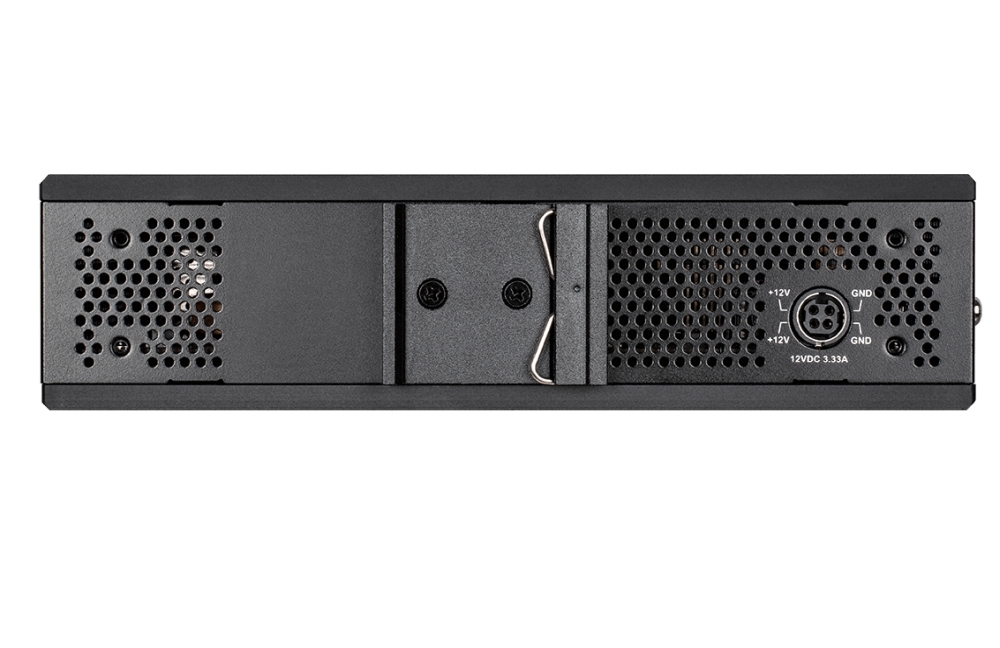

Захранване	Dual power input for redundant power supplies: 12 to 48 V DC terminal block dual input, 12 V DC 4-pin DIN single power input; Power Consumptions: Maximum - 10.26 W, Standby - 5.94 W
Routing	Layer 2 Only
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	24 Gbps
Пропускателна способност, Mpps	17.85 Mpps
MAC адреси	8000 MAC address table size
VLAN (брой, стандарти)	IEEE 802.1Q tagged VLAN; Port-based VLAN; Auto-Surveillance VLAN 2.0 (ASV 2.0); Voice VLAN; Asymmetric VLAN; VLAN group: Supports 128 static VLAN groups, Max. 4094 VIDs; GVRP
QoS	IEEE 802.1p Quality of Service (QoS), 4 queues per port, Queue handling, Strict Priority Queue (SPQ), Weighted Round Robin (WRR), Port-based bandwidth control (rate limiting) - Ingress: 100 kbps
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1x
L3 мрежови стандарти	-
IPv6 functionality	-
Сигурност	D-Link Safeguard, Traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS attack prevention, SSL, SSH, Port security
Размери (Ш, Д, В), mm	210 x 171.2 x 53 mm
Опция за монтаж	DIN rail/wall mountable
Други	1x RJ-45 Console port, IP30-rated metal casing
Гаранция	60 месеца
