P/N: DIS-200G-12S

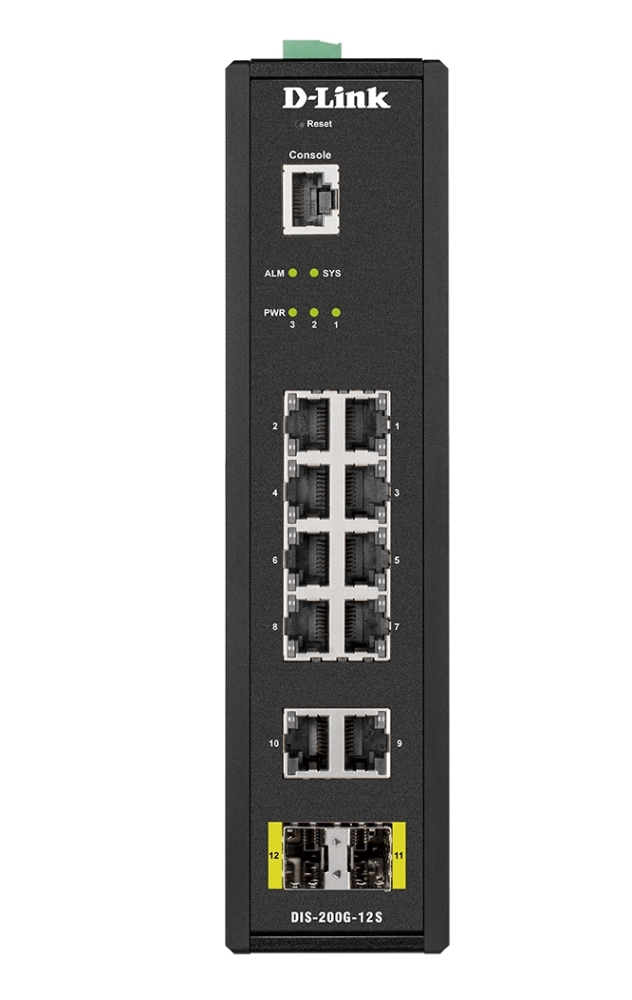

Commutator/ Switch, D-Link 12 Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) ports & 2 x SFP ports

D-LINK мрежови продукти >> D-Link 12 Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) ports & 2 x SFP ports Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	12
Мain ports, type	10x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink ports	2xSFP
Open (10GB) slots	No
Management	Web-based UI (supports IPv4/IPv6), Client-based D-Link Network Assistant (DNA), Industry-standard CLI, SNTP, SNMP v1/v2c/v3, SNMP trap, Telnet server, System Log, DHCP client, TFTP client, LLDP, DDP, Dual images, Dual configurations
Stackable	No
Fans	Fanless design
Power supply	Dual power input for redundant power supplies: 12 to 48 V DC terminal block dual input, 12 V DC 4-pin DIN single power input; Power Consumptions: Maximum - 10.26 W, Standby - 5.94 W
Routing	Layer 2 Only
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	24 Gbps
Throughput, Mpps	17.85 Mpps
MAC addresses	8000 MAC address table size
VLAN (number, standards)	IEEE 802.1Q tagged VLAN; Port-based VLAN; Auto-Surveillance VLAN 2.0 (ASV 2.0); Voice VLAN; Asymmetric VLAN; VLAN group: Supports 128 static VLAN groups, Max. 4094 VIDs; GVRP
QoS	IEEE 802.1p Quality of Service (QoS), 4 queues per port, Queue handling, Strict Priority Queue (SPQ), Weighted Round Robin (WRR), Port-based bandwidth control (rate limiting) - Ingress: 100 kbps
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1x
L3 network standards	-
IPv6 functionality	-
Security	D-Link Safeguard, Traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS attack prevention, SSL, SSH, Port security
Dimensions (W, D, H), mm	210 x 171.2 x 53 mm
Мounting option	DIN rail/wall mountable
Other	1x RJ-45 Console port, IP30-rated metal casing
Warranty	60 months
